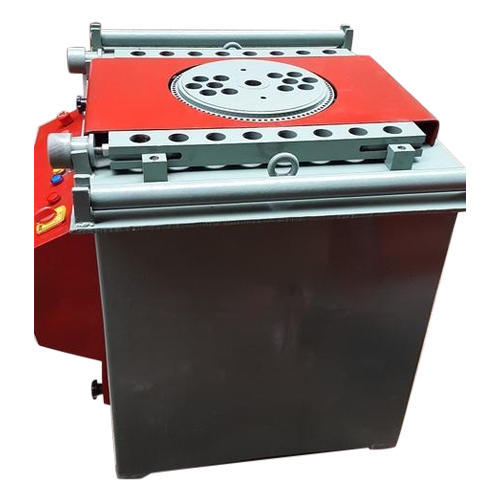

Semi Automatic Bar Bending Machine -model RUB 52
| Body Material | MS |
| Automatic Grade | Semi-Automatic |
| Max Bending Radius | 0-50 mm |
| Power Source | Electric |
Richo make semi automatic Bar Bending Machine is the most economic rebaring system in this era.The machine made very robust suitable table size fitted with heavy duty helical gear box for better strength and performance, gear box is oil bathed thus no need of routine maintenance, all electrical devices are suitablly protectedThe machine is able to give any bend, angel and stirrups.
Features:
- Comfortable table size for easy operation
- Dual operation by hand and foot
- Two guide roller for easy pulling of rod
- Helical gear in model RUB 36 & RUB 38 for more strength
- Oil bathed gear box therfore no routine maintenance is required
- All Siemens components are used for panel
- Electrical breaking system for more safety Optional
- Different sizes of bushes & bending pins provide for defferent operation
- Electrical panel is suitably protected
Accessories provide with machine
- Foot switch- 01 No.
- Checking Block- 01 No.
- Bending Pin- 0.3 No.
- Squire Pin- 01 No.
- Stirrup Bending Pin- 01 No.
- Bush- 05 No.
Specification:
| Model | Motor (H.P.) | Motor (Phase) | Kg/mm2 45 | Kg/mm2 65 | Kg/mm2 80 | Dimension (mm) (LxWxH) | Weight Approx (Kgs) |
| RUS-36 | 5.0 HP | 3 Phase | 36 | 32 | 30 | 840x705x875 | 525 |
| RUS-38 | 5.0 HP | 3 Phase | 38 | 34 | 32 | 845x710x875 | 550 |
| RUS-42 | 5.0 HP | 3 Phase | 42 | 36 | 34 | 1000x800x900 | 625 |
| RUS-52 | 5.0 HP | 3 Phase | 50 | 44 | 42 | 1100x950x910 | 700 |
| RUS-55 | 7.5 HP | 3 Phase | 55 | 46 | 44 | 1100x950x910 | 750 |
Additional Information:
- Item Code: RUB52
